HI98703 จาก Hanna เป็นเครื่องมือวัดความขุ่นแบบพกพาภาคสนาม ย่านการวัด 0-1000 NTU มีความแม่นยำสูง (± 2% ของการอ่าน 0.02 NTU) จะมาพร้อม (AMCO-AEPA-1)
มาตรฐานความขุ่นหลักที่ใช้สำหรับการสอบเทียบ HI98703 ตรงตามความต้องการของมาตรฐาน (EPA Method 180.1 and Standard Methods for the Examination of Water and Wastewater 2130 B)
วิดีโอแนะนำ HI98703
Features
EPA Compliant Measurement: The HI98703 meets and exceeds the requirements of EPA and Standard Methods for turbidity measurements. When the meter is in EPA mode all turbidity readings are rounded accordingly to meet reporting requirements.
Calibration: A two, three, or four-point turbidity calibration can be performed by using the supplied (<0.10, 15.0, 100, and 750 NTU) standards. Calibration points can be modified if user-prepared standards are used.
AMCO AEPA-1 Primary Turbidity Standard: The AMCO AEPA-1 supplied standards are recognized as a primary standard by the USEPA. These non-toxic standards are made of styrene divinylbenzene polymer spheres that are uniform in size and density. The standards are reusable and stable with a long shelf life.
GLP Data: The HI98703 features complete GLP (Good Laboratory Practice) functions that allow traceability of the calibration conditions. Data includes calibration points, date, and time.
Data Logging: Up to 200 measurements can be stored in the internal memory and recalled at any time.

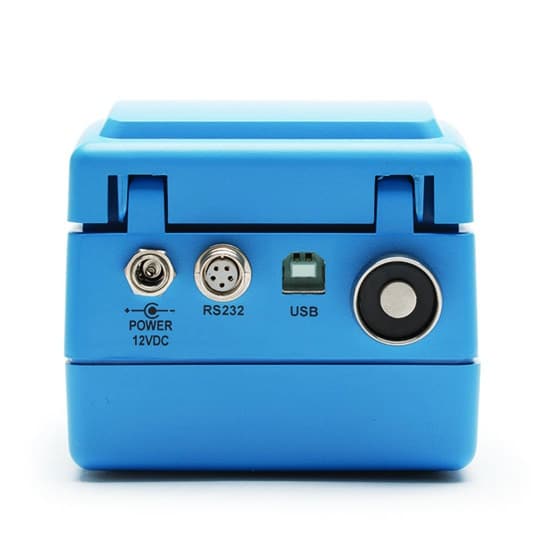

Data Transfer: For further storage or analysis options, logged data can be downloaded to a Windows compatible PC using the RS232 or USB port and the HI92000 software.
Backlit Display: A backlit LCD display provides an easy to understand, user-friendly interface. Displayed codes guide the user step-by-step through routine operation and calibration.
Specifications HI98703
| SKU | HI98703 |
|---|---|
| Product Name | Turbidity (EPA) Portable Meter |
| Turbidity Range | 0.00 to 9.99; 10.0 to 99.9; 100 to 1000 NTU |
| Turbidity Resolution | 0.01; 0.1; 1 NTU |
| Turbidity Accuracy | ±2% of reading plus 0.02 NTU |
| Turbidity Repeatability | ±1% of reading or 0.02 NTU, whichever is greater |
| Turbidity Stray Light | < 0.02 NTU |
| Turbidity Calibration | two, three, or four-point calibration |
| Turbidity Measuring Method | ratio nephelometric method (90° & 180°). Adaptation of the USEPA Method 180.1 and Standard Method 2130 B |
| Turbidity Measuring Modes | normal, average, continuous |
| Turbidity Light Source | tungsten filament lamp |
| Turbidity Light Detector | silicon photocell |
| Logging Memory | 200 records |
| Connectivity | USB or RS232 |
| Automatic Shut-Off | auto-off after 15 minutes of non-use |
| Display | 60 x 90 mm backlit LCD |
| Battery Type/Life | 4 (1.5V) AA alkaline batteries |
| Power Supply | 4 (1.5V) AA alkaline batteries or AC adapter |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 224 x 87 x 77 mm (8.8 x 3.4 x 3.0”) |
| Weight | 512 g (18 oz.) |

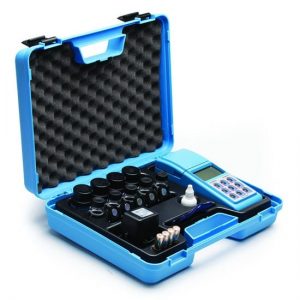

| Ordering Information | HI98703 is supplied with sample cuvettes and caps (5), HI98703-11 calibration cuvettes, silicone oil, cuvette wiping cloth, batteries, AC adapter, instruction manual, and rugged carrying case. |
