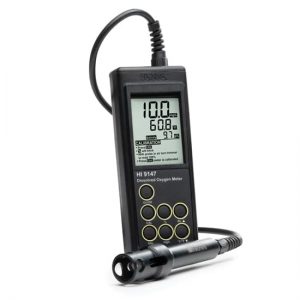

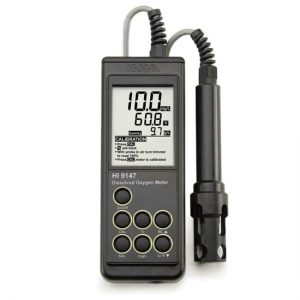

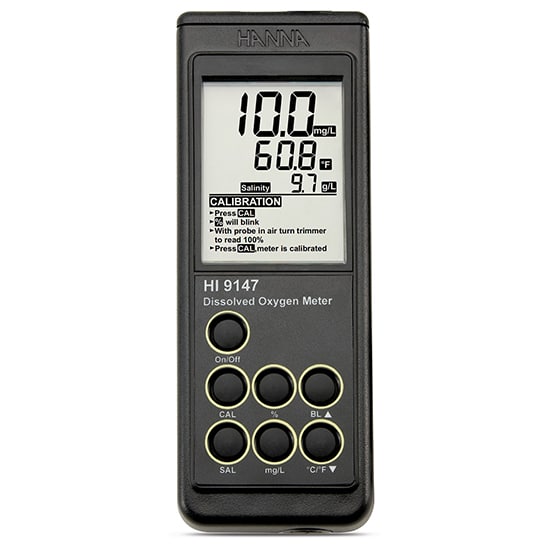

HI9147 ออกแบบมาเพื่อให้มีความแม่นยำและความถูกต้อง มีย่านการวัด 0.0 – 50.0 ppm (mg/L) และ 0.0 – 600.0% saturation ด้วยความละเอียด 0.1 mg/L (ppm) และ1% saturation ด้วยความถูกต้อง ±1% การสอบเทียบแบบ Manual หนึ่งจุด การชดเชยอุณหภูมิอัตโนมัติ มีการชดเชยความเค็มและระดับความสูง (Altitude) สอดคล้องกับเกณฑ์มาตรฐาน (CE)
HI9147 ช่วยให้การตรวจสอบตัวอย่างเช่นคุณภาพน้ำดื่ม ของทะเลสาบหรือลำธารและสิ่งมีชีวิตในน้ำ รวมถึงน้ำเสียและบำบัดน้ำ ควบคุมมลพิษ ฟาร์มเลี้ยงปลาและประเภทต่างๆ ของการผลิต
วิดีโออธิบายเครื่องวัด HI9147
การสั่งซื้อมีหลาย Option ในเลือกดังต่อไปนี้
- HI9147-04 is supplied with HI76409/4 probe with 4 m (13’) cable, spare membranes (5), electrolyte solution (30 mL), batteries, screwdriver and instructions.
- HI9147-10 is supplied with HI76409/10 probe with 10 m (32.8’) cable, spare membranes (5), electrolyte solution (30 mL), batteries, screwdriver and instructions.
- HI9147-15 is supplied with HI76409/15 probe with 15 m (49.2’) cable, spare membranes (5), electrolyte solution (30 mL), batteries, screwdriver and instructions.
- HI9147-20 is supplied with HI76409/20 probe with 20 m (65.6′) cable, spare membranes (5), electrolyte solution (30 mL), batteries, screwdriver and instructions.
คุณสมบัติ HI9147
- Replaceable Membrane Caps: The pretensioner high-density polyethylene (HDPE) membranes employ a screw cap design that can be changed quickly by simply filling with the HI7042 electrolyte fill solution and screwing onto the DO probe.
- Galvanic Measuring System: The meter and probe use galvanic sensor technology where the electrodes’ potential difference drives the reaction, requiring no external voltage. The probe is comprised of a silver cathode and zinc anode in an electrolyte solution held in place over the surface of the electrodes by a polymer membrane. Oxygen diffuses across the membrane and the system establishes a current proportional to the concentration of dissolved oxygen present.
- Automatic Temperature Compensation: All readings are automatically compensated for temperature variations with a high accuracy, built-in linearized thermistor temperature sensor behind a stainless steel cover.
Altitude Compensation: The HI9147 allows for altitude compensation for up to 4000 meters with a 100-meter resolution. - Salinity Compensation: Salinity compensation is adjustable from 0 to 51 g/L (ppt) with a 1 g/L resolution for the measurement of DO in brackish and sea water.
- Backlit LCD: The HI9147 has a display with a backlight for easy viewing of readings in poor lighting conditions
Specifications HI9147
- DO Range: 0.0 to 50.0 ppm (mg/L); 0.0 to 600.0% saturation
- DO Resolution: 0.1 mg/L (ppm); 1% saturation
- DO Accuracy: ±1% of reading
- DO Calibration: Manual, in saturated air
- Temperature Range: 0.0 to 50.0°C / 32.0 to 122.0°F
- Temperature Resolution: 0.1°C; 1°F
- Temperature Accuracy: ±0.2°C; ±1°F (excluding probe error)
- Temperature Compensation: Automatic from 0 to 50°C (32 to 122°F)
- Altitude Compensation: 0 to 4000 m (resolution 100 m)
- Salinity Compensation: 0 to 51 g/L (ppt) (1 g/L resolution)
- Electrode/Probe: galvanic DO probe, internal temperature sensor, DIN connector
- Battery Type/Life: 1.5V AAA (3) / approximately 1000 hours of continuous use without backlight
- Environment: 0 to 50°C; RH max 95% non-condensing
- Dimensions: 185 x 72 x 36 mm
- Weight: 450 g
- Ordering Information: HI9147 is supplied complete with HI76409 probe, HI76409A/P pre-formed HDPE DO membranes (2), HI7042S electrolyte solution (30 mL), batteries, instructions and rugged carrying case
