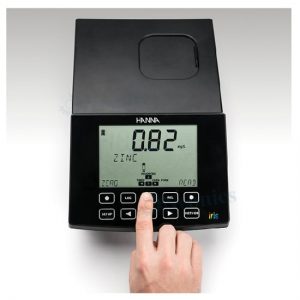

HI801 เครื่องวัดสเปกโตโฟโต้มิเตอร์ Spectrophotometer

HI801-02 iris เป็นเครื่องสเปกโทรโฟโตมิเตอร์ที่ใช้งานง่ายที่ช่วยให้การวัดความยาวคลื่นของแสงที่มองเห็นได้ทั้งหมด เลือกความยาวคลื่นที่แม่นยำระหว่าง 340 nm ถึง 900 nm

สำหรับการปฏิบัติตามวิธีการและความแม่นยำที่จำเป็นสำหรับอุตสาหกรรมเช่นห้องปฏิบัติการระดับมืออาชีพ, ระบบบำบัดน้ำเสีย, โรงงานผลิตไวน์และอื่นๆ ผลลัพธ์มีความสอดคล้องและถูกต้องโดยไม่คำนึงถึงปริมาณงานด้วยคุณภาพสูงและระบบเลนส์ที่ออกแบบมาโดยเฉพาะ ตัวเลือกการปรับแต่งรวมถึงรูปร่างและขนาด cuvette เส้นโค้งการปรับเทียบที่กำหนดเองและวิธีการ

Superior design for superior results.

iris can test a wide variety of analytical measurements and is capable of measuring in a spectral range of 340 nm to 900 nm. With the compact design of its advanced optical system, iris can be used in almost any sized space while providing accurate and consistent results. The split beam optical system allows iris to automatically compensate for any drift in light source, resulting in superior accuracy.

No need for measurement conversions.

Whether you are testing for chlorine or running enzymatic assays, our spectrophotometer will conveniently display results in the units that matter most to you. iris can measure in transmittance, absorbance, and concentration based on your need.

รายละเอียด HI801 iris

SKU	HI801-02
Product Name	iris Visible Spectrophotometer - HI801
pH Range	6.5 to 8.5 pH
pH Resolution	0.1 pH
pH Accuracy	±0.1 pH
pH Method	Adaptation of the Phenol Red method
Dissolved Oxygen Range	0.0 to 10.0 mg/L (as O2 )
Dissolved Oxygen Resolution	0.1 mg/L
Dissolved Oxygen Accuracy	±0.4 mg/L ±3% of reading
Dissolved Oxygen Measurement Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method
Absorbance Range	0.000 to 3.000 Abs
Absorbance Resolution	0.001 Abs
Absorbance Accuracy	5 mAbs at 0.000-0.500 Abs 1% at 0.500-3.000 Abs
Alkalinity Range	0 to 500 mg/L (as CaCO3 )
Alkalinity Resolution	1 mg/L
Alkalinity Accuracy	±5 mg/L ±5% of reading
Alkalinity Method	Colorimetric Method
Seawater Alkalinity Range	0 to 300 mg/L (as CaCO3 )
Seawater Alkalinity Resolution	1 mg/L
Seawater Alkalinity Accuracy	±5 mg/L ±5% of reading
Seawater Alkalinity Method	Colorimetric Method
Aluminum Range	0.00 to 1.00 mg/L (as Al3+)
Aluminum Resolution	0.01 mg/L
Aluminum Accuracy	±0.04 mg/L ±4% of reading
Aluminum Method	Adaptation of the aluminon method.
Ammonia Range	Low Range
Ammonia Resolution	Low and Medium Range
Ammonia Accuracy	Low Range
Ammonia Method	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method.
Anionic Surfactants Range	0.00 to 3.50 mg/L (as SDBS)
Anionic Surfactants Resolution	0.01 mg/L
Anionic Surfactants Accuracy	±0.04 mg/L ±3% of reading
Anionic Surfactants Method	Adaptation of the USEPA method 425.1 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 5540C, Anionic Surfactants as MBAS
Bromine Range	0.00 to 8.00 mg/L (as Br2 )
Bromine Resolution	0.01 mg/L
Bromine Accuracy	±0.08 mg/L ±3% of reading
Bromine Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method
Calcium Range	0 to 400 mg/L (as Ca2+)
Calcium Resolution	1 mg/L
Calcium Accuracy	±10 mg/L ±5% of reading
Calcium Method	Adaptation of the Oxalate method
Carbon Dioxide Range	0.00 to 2.00 mg/L (as ClO2 )
Carbon Dioxide Resolution	0.01 mg/L
Carbon Dioxide Accuracy	±0.10 mg/L ±5% of reading
Carbon Dioxide Method	Adaptation of the Chlorophenol Red method
Chemical Oxygen Demand Range	Low Range
Chemical Oxygen Demand Resolution	1 mg/L
Chemical Oxygen Demand Accuracy	Low Range
Chemical Oxygen Demand Method	Adaptation of the USEPA 410.4
Chloride Range	0.0 to 20.0 mg/L (as Cl)
Chloride Resolution	0.1 mg/L
Chloride Accuracy	±0.5 mg/L ±6% of reading
Chloride Method	Adaptation of the mercury(II) thiocyanate method
Chlorine Dioxide Range	0.00 to 2.00 mg/L (as ClO2 )
Chlorine Dioxide Resolution	0.01 mg/L
Chlorine Dioxide Accuracy	±0.10 mg/L ±5% of reading
Chlorine Dioxide Method	Adaptation of the Chlorophenol Red method
Free Chlorine Range	Ultra Low Range
Free Chlorine Resolution	Ultra Low Range
Free Chlorine Accuracy	Ultra Low Range
Total Chlorine Range	Ultra Low Range
Total Chlorine Resolution	Ultra Low Range
Total Chlorine Accuracy	Ultra Low Range
Chromium, Hexavalent Range	Low Range
Chromium, Hexavalent Resolution	Low Range
Chromium, Hexavalent Accuracy	Low Range
Chromium, Hexavalent Method	Adaptation of the ASTM Manual of Water and Environmental Technology, D1687, Diphenylcarbohydrazide method
Color, Water Range	0 to 500 PCU (Platinum Cobalt Units)
Color, Water Resolution	1 PCU
Color, Water Accuracy	±10 PCU ±5% of reading
Color, Water Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Colorimetric Platinum Cobalt method
Color, Maple Syrup Range	0.00 to 100.00 %T
Color, Maple Syrup Resolution	0.01 %T
Color, Maple Syrup Accuracy	±3% of reading
Color, Maple Syrup Method	Direct measure
Copper Range	Low Range
Copper Resolution	Low Range
Copper Accuracy	Low Range
Copper Method	Adaptation of the EPA method
Cyanide Range	0.000 to 0.200 mg/L (as CN-)
Cyanide Resolution	0.001 mg/L
Cyanide Accuracy	±0.005 mg/L ±3% of reading
Cyanide Method	Pyridine-Pyrazalone
Cyanuric Acid Range	0 to 100 mg/L (as CYA)
Cyanuric Acid Resolution	1 mg/L
Cyanuric Acid Accuracy	±1 mg/L ±15% of reading
Cyanuric Acid Method	Adaptation of the turbidimetric method
Fluoride Range	Low Range
Fluoride Resolution	Low Range
Fluoride Accuracy	Low Range
Fluoride Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method
Hardness, Total Range	Low Range
Hardness, Total Resolution	1 mg/L
Hardness, Total Accuracy	Low Range
Hardness, Total Method	Adaptation of the EPA recommended method 130.1
Hardness, Calcium Range	0.00 to 2.70 mg/L (as CaCO3 )
Hardness, Calcium Resolution	0.01 mg/L
Hardness, Calcium Accuracy	±0.11 mg/L ±5% of reading
Hardness, Calcium Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Calmagite method
Hardness, Magnesium Range	0.00 to 2.00 mg/L (CaCO3 )
Hardness, Magnesium Resolution	0.01 mg/L
Hardness, Magnesium Accuracy	±0.11 mg/L ±5% of reading
Hardness, Magnesium Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, EDTA Colorimetric method
Hydrazine Range	0 to 400 µg/L (as N2H4 )
Hydrazine Resolution	1 µg/L
Hydrazine Accuracy	±4% of full scale reading
Hydrazine Method	Adaptation of the ASTM Manual of Water and Environmental Technology, method D1385, p-Dimethylaminobenzaldehyde method
Iodine Range	0.0 to 12.5 mg/L (as I2 )
Iodine Resolution	0.1 mg/L
Iodine Accuracy	±0.1 mg/L ±5% of reading
Iodine Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method
Iron Range	Low Range
Iron Resolution	Low Range
Iron Accuracy	Low Range
Iron Method	Low Range
Magnesium Range	0 to 150 mg/L (as Mg2+)
Magnesium Resolution	1 mg/L
Magnesium Accuracy	±5 mg/L ±3% of reading
Magnesium Method	Adaptation of the Calmagite method
Manganese Range	Low Range
Manganese Resolution	Low Range
Manganese Accuracy	Low Range
Manganese Method	Low Range
Molybdenum Range	0.0 to 40.0 mg/L (as Mo6+)
Molybdenum Resolution	0.1 mg/L
Molybdenum Accuracy	±0.3 mg/L ±5% of reading
Molybdenum Method	Adaptation of the mercaptoacetic acid method
Nickel Range	Low Range
Nickel Resolution	Low Range
Nickel Accuracy	Low Range
Nickel Method	Low Range
Nitrate Range	0.0 to 30.0 mg/L (as NO3 - N)
	Chromotropic Acid
Nitrate Resolution	0.1 mg/L
Nitrate Accuracy	±0.5 mg/L ±10% of reading
	Chromotropic Acid
Nitrate Method	Adaptation of the cadmium reduction method
	Chromotropic Acid
Nitrite Range	Marine Ultra Low Range
Nitrite Resolution	Marine Ultra Low Range
Nitrite Accuracy	Marine Ultra Low Range
Nitrite Method	Marine Ultra Low Range
Nitrogen, Total Range	Low Range
Nitrogen, Total Resolution	Low Range
Nitrogen, Total Accuracy	Low Range
Nitrogen, Total Method	Chromotropic acid method
Oxygen, Scavenger Range	Carbohydrazide
Oxygen, Scavenger Resolution	Carbohydrazide
Oxygen, Scavenger Accuracy	Carbohydrazide
Oxygen, Scavenger Method	Adaptation of the iron reduction method
Ozone Range	0.00 to 2.00 mg/L (as O3 )
Ozone Resolution	0.01 mg/L
Ozone Accuracy	±0.02 mg/L ±3% of reading
Ozone Method	Colorimetric DPD Method
Phosphate Range	Low Range
Phosphate Resolution	Low Range
Phosphate Accuracy	Low Range
Phosphate Method	Low Range
Phosphorous, Acid Hydrolyzable Range	0.00 to 1.60 mg/L (as P)
Phosphorous, Acid Hydrolyzable Resolution	0.01 mg/L
Phosphorous, Acid Hydrolyzable Accuracy	±0.05 mg/L or ±5% of reading
Phosphorous, Acid Hydrolyzable Method	Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method.
Phosphorous, Reactive Range	Low Range
Phosphorous, Reactive Resolution	Low Range
Phosphorous, Reactive Accuracy	Low Range
Phosphorous, Reactive Method	Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method.
Phosphorous, Total Range	Low Range
Phosphorous, Total Accuracy	Low Range
Phosphorous, Total Resolution	Low Range
Phosphorous, Total Method	Low Range
Potassium Range	Low Range
Potassium Resolution	Low Range
Potassium Accuracy	Low Range
Potassium Method	Adaptation of the Turbidimetric Tetraphenylborate method
Silica Range	Low Range
Silica Resolution	Low Range
Silica Accuracy	Low Range
Silica Method	Low Range
Silver Range	0.000 to 1.000 mg/L (as Ag)
Silver Resolution	0.001 mg/L
Silver Accuracy	±0.020 mg/L ±5% of reading
Silver Method	Adaptation of the PAN method
Sulfate Range	0 to 150 mg/L (as SO42-)
Sulfate Resolution	1 mg/L
Sulfate Accuracy	±5 mg/L ±3% of reading
Sulfate Method	Sulfate is precipitated with barium chloride crystals
Zinc Range	0.00 to 3.00 mg/L (as Zn)
Zinc Resolution	0.01 mg/L
Zinc Accuracy	±0.03 mg/L ±3% of reading
Zinc Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method
Wavelength Range	340 to 900 nm
Wavelength Resolution	1 nm
Wavelength Accuracy	±1.5 nm
Measurement Modes	Transmittance (% T), absorbance (abs), concentration with choice of units (ppm, mg/L, ppt, ºf, ºe, ppb, meq/L, μg/L, PCU, Pfund, pH, dKH, ºdH, meq/kg or no measurement unit)
Wavelength Selection	automatic, based on the selected method (editable for user methods only)
Optical System	split beam sample and reference light detectors
Wavelength Calibration	internal, automatic at power-on, visual feedback
Data Points Stored	up to 9999 measured values
Export Capability	.csv file format, .pdf file format
Connectivity	(1) USB - A (mass storage host); (1) USB - B (mass storage device)
Power Supply	15 VDC power adapter; 10.8 VDC Li-Ion rechargeable battery
Battery Type/Life	3000 measurements or 8 hours
Environment	0 to 50 °C (32 to 122 °F); 0 to 95% RH
Weight	3 kg (6.6 lbs)
Dimensions	155 x 205 x 322 mm (6.1 x 8.0 x 12.6")
Ordering Information	HI801 is supplied with 22 mm sample cuvette and cap (4), 10 mm square, 13 mm round and 16 mm round cuvette adapters, cloth for wiping cuvettes, scissors, USB cable, lithium ion rechargeable battery, 115VAC to 15VDC power adapter, USB drive, instruction manual, and instrument quality certificate.
